INDUSTRIESHydrostatic hose testing
Bring the conversation down to the assembly level. Share hose type, diameter, length, end connections, and quantity so the testing scope can be reviewed.
Hose assemblies · Shop testingShop-based testing · INVICTUS Industries
Pressure
reveals
the truth.
Hydrostatic hose & pressure testing up to 7,000 PSI.
Shop-based testing with custom stainless steel identification tags.
UP TO 7,000 PSI / HOSE ASSEMBLIES / SHOP SERVICE
INVICTUS / UNDER PRESSURE
HYDROSTATIC TESTINGASSEMBLY ILLUSTRATION
Built around your testing requirements.01 / DEFINE THE SCOPE02 / CONFIRM THE TEST03 / PLAN THE HANDOFF
Our focus
Your hose.
Your requirements.
A useful testing inquiry starts with the details: what needs to be tested, the required pressure, and the acceptance criteria for your application.
Pressure testing inquiries
Have a specific pressure testing requirement? Identify the item and provide the applicable manufacturer instructions or project specification for a scope review.
Project-specific requirementsEquipment & identification
Test the assembly.
Mark the details.
Hydrostatic testing up to 7,000 PSI, paired with stainless steel tags laser-marked with the testing information you specify.
Hydrorex M20-7000
Our shop uses a Hydrorex M20-7000 electric pressure test unit with a 20 HP motor. We offer hydrostatic testing up to 7,000 PSI, using separate manifolds for lower- and higher-pressure testing.
Test pressure is selected for the assembly ratings and applicable testing requirements.Your information. On your tag.
We use a Cloudray laser with LightBurn software to mark 2.5″ × 1.5″ dual-slotted stainless steel ID tags with customer-selected testing information. Each tag is secured with two stainless steel zip ties. Specify the wording and identification fields you need.
2.5″ × 1.5″ · Two slots · Two stainless steel zip ties
2.5″ × 1.5″ STAINLESS STEEL · TWO STAINLESS STEEL ZIP TIES

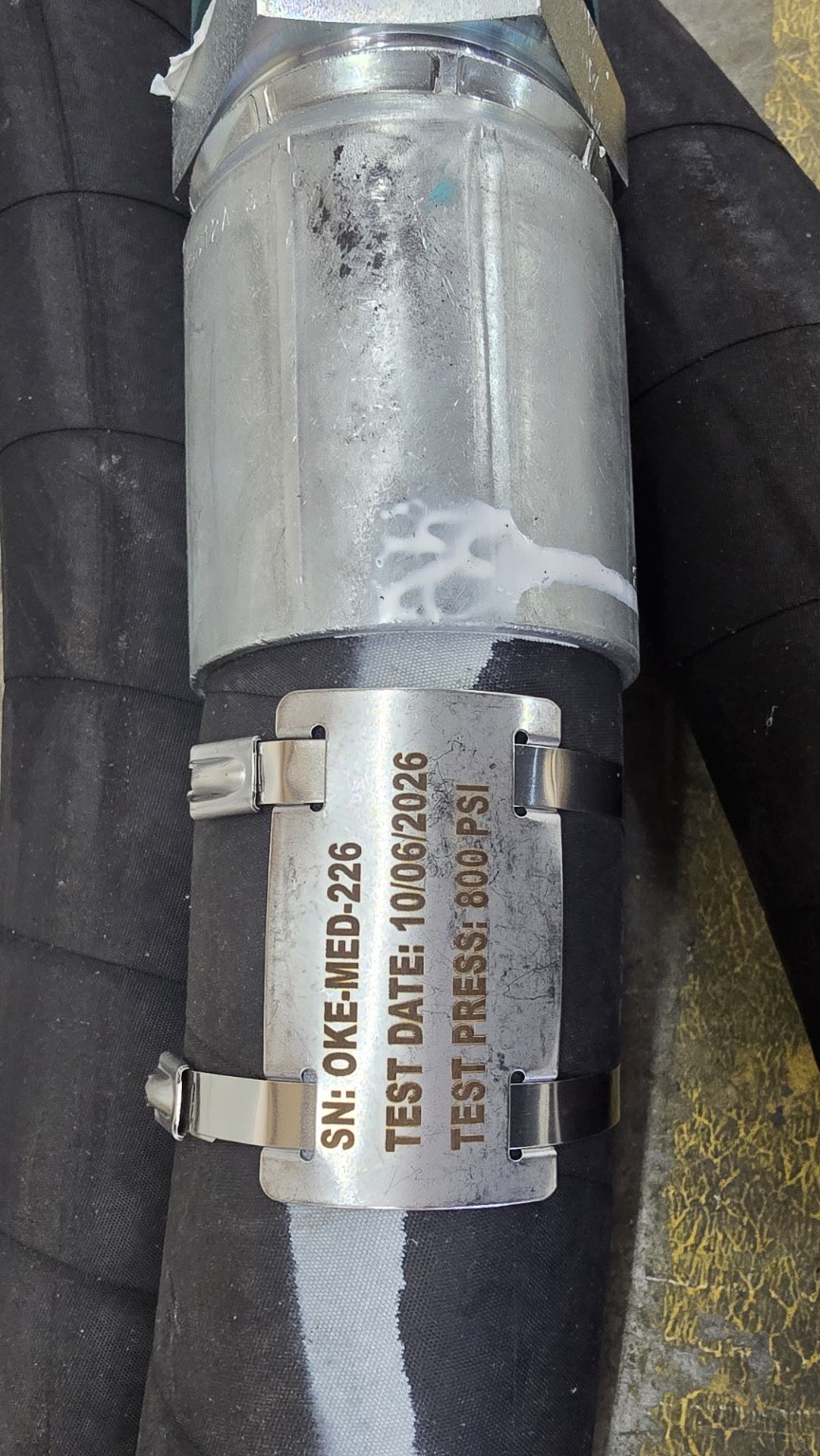

Example shown: assembly ID, test date, and 800 PSI test pressure.
THE RIGHT SETUP FOR THE TESTSeparate manifolds.
Separate manifolds.
One testing service.

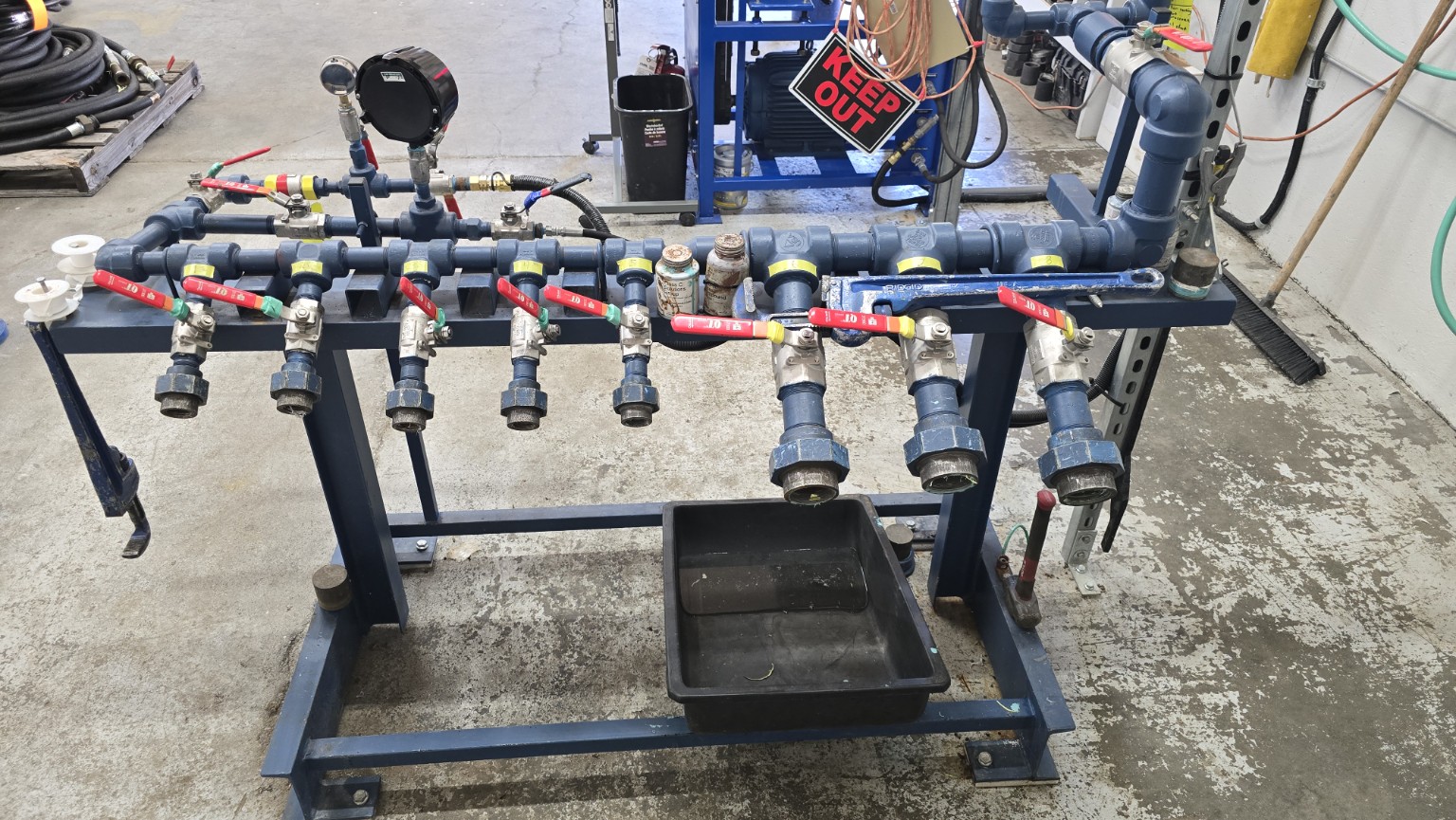

The pictured shop station is used for tests below 2,000 PSI. A separate higher-pressure manifold supports our testing service up to 7,000 PSI.
Provide the required test pressure and assembly details when requesting testing.
Plan your testing inquiry ↗A clear starting point
Define it.
Then test it.
No guesswork in the inquiry. Establish the assembly details and testing requirements before arranging shop delivery.
Tell us what you have.
Identify the assembly, quantity, end fittings, and known condition. Include the service application and any relevant history.
Specify what you need.
Provide the required test pressure, hold duration, acceptance criteria, and any requested records. If something is unknown, flag it for review.
Plan the shop handoff.
Confirm scope, pricing, and scheduling directly with INVICTUS before sending or delivering assemblies.
Testing scope, assembly suitability, and any documentation requirements must be confirmed before scheduling. A testing inquiry does not establish acceptance or certify an assembly.
Design your identification tag
See what fits.
Before you send it.
Enter up to three lines and see the space they occupy on a 2.5″ × 1.5″ tag. Text stays at the reference height; long lines are flagged instead of shrunk.
CUSTOM TAG LAYOUTTHREE LINES
Edit the full wording of each line. Date and pressure placeholders describe the requested layout; final test information is completed by INVICTUS.
LIVE TAG PREVIEW2.5″ × 1.5″
REFERENCE TEXT HEIGHT 2.98 mmTEXT BLOCK GUIDE 51.5 mm wide · 19.89 mm max height
Maximum text-block height is approximately 19.9 mm, confirmed by INVICTUS from the LightBurn layout. The preview allows approximately 51.5 mm between the illustrated tie areas. Text scale is calibrated to the 47.38 mm-wide LightBurn example; that example width is not treated as the available-space limit. This fixed scale applies to every line; text is not automatically shrunk to fit. Other wording remains an estimate until production review. Slots and ties are illustrative. INVICTUS reviews the final layout.
Start the conversation
What needs
to be tested?
Put the key details in one place. Build an inquiry you can save and share with INVICTUS Industries.
Get in touchoffice@invictus-industries.com ↗
- Hose size, length, and end connections
- Assembly quantity and service application
- Test specification and pressure requirements
- Requested completion date and records
- Custom stainless steel tag information — preview your layout
TESTING INQUIRYINVICTUS / 01
Your inquiry is ready.
Save or copy this draft to share directly. Nothing has been sent.
Open email draft ↗Before you start
A few practical
questions.
What pressure range can you test?
We offer hydrostatic testing up to 7,000 PSI. Our pictured shop station is used below 2,000 PSI, with a separate manifold for higher-pressure testing. Each test pressure is selected according to assembly ratings and the applicable test requirements.
What if I don’t know the test pressure?
Mark it as unknown and identify the assembly and application. Include any manufacturer information or project testing specification you have so the requirement can be reviewed.
Can I arrange on-site testing?
This website focuses on shop-based testing. Any request outside that scope requires a separate discussion with INVICTUS.
Can you customize stainless steel tags?
Yes. Our 2.5″ × 1.5″ dual-slotted stainless steel ID tags are laser-marked with customer-selected testing information and secured with two stainless steel zip ties. Include your desired fields and wording in the inquiry.
What if I need a specific report or test record?
List the required record, format, acceptance criteria, and governing specification in your inquiry. Confirm the documentation scope before scheduling.
Does this form book a test?
No. It creates a draft inquiry you can download or copy. Scope, suitability, pricing, and scheduling need direct confirmation before delivery.
